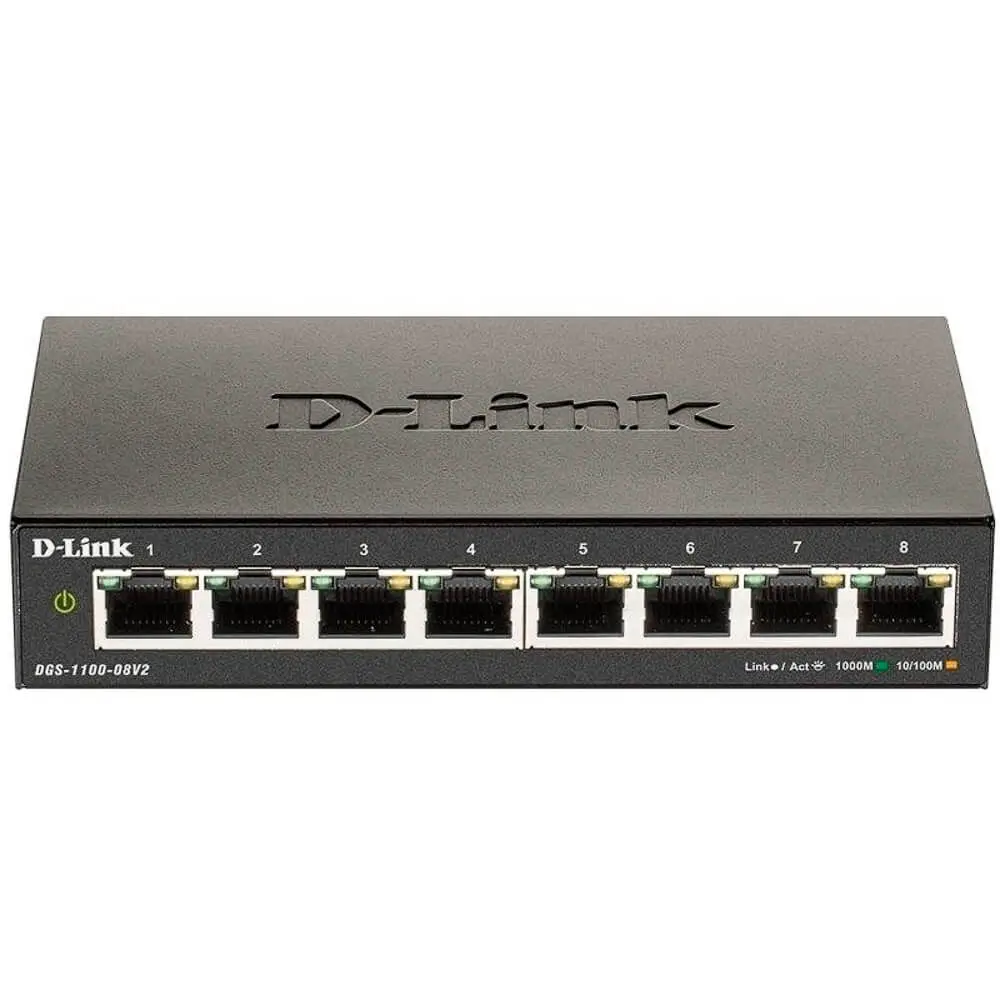

D-LINK DGS-1100-08V2/E SMART SWITCH 8XGBE L2

Rendimiento:
16Gbps
– Max.velocidad envío
11.9 Mpps
– Tamaño tabla MAC
8K Entries
– Packet Buffer
1.5Mbits
– Modo envío:
Store and Forward
– Alimentación:
100 to 240 VAC, 50 to 60 Hz
– Max.Consumo
4.94 Watts
– Consumo Standy
1.93 Watts
– Sin ventilador
– Nivel acústico:
0 dBA
– Dimensions (W x D x H)
145 x 82 x 28 mm
– Peso:
0.34kg
– LEDs
Power (Per Device)
PoE Max. (DGS-1100-08P Only)
Link/Activity/Speed (Per Port)
– Certifications
FCC Class A
CE Class A
VCCI Class A
– Vertificaciones
UL/cUL
CE LVD
– MTBF
503,585 Hours (DGS-1100-08)
– VLAN
Port-based VLAN
802.1Q Tagged VLAN
Surveillance VLAN
Voice VLAN
Management VLAN
VLAN Group
Soporta 32 static VLAN groups
Max. 4094 VIDs
– Funciones L2
Flow Control
802.3x Flow Control
HOL Blocking Prevention
IGMP Snooping
IGMP v1/v2 Snooping
Soporta 32 Groups
Loopback Detection
Link Aggregation
2 groups, 2-4 ports per group (DGS-1100-08/08P)
Port Mirroring
One-to-One
Many-to-One (DGS-1100-16/24 only)
Cable Diagnostics
Statistics
Tx Ok
Tx Error
Rx Ok
– Rx Error
– QoS
802.1p Quality of Service
4 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
– Bandwidth Control
– DGS-1100-05/08/08P Port Based (Ingress/Egress, min. granularity 8 kb/s)
– Seguridad
Static MAC Address
Max. 32 entries (DGS-1100-05/08/08P)
Broadcast/Multicast/Unknown Unicast Storm Control
– Gestíon
Web-Based GUI (Soporta IPv4)
Smart Console Utility
– D-Link Green
Power Saving by
Link Status
Cable Length
Energy Efficient Ethernet (IEEE 802.3az)
RoHS Compliant
– RFC Standard List
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 951 BootP Client
RFC 1542 BootP/DHCP client
RFC 1945 HTTP/1.0
RFC 2647 802.1p
– No Incluye enchufe británico
