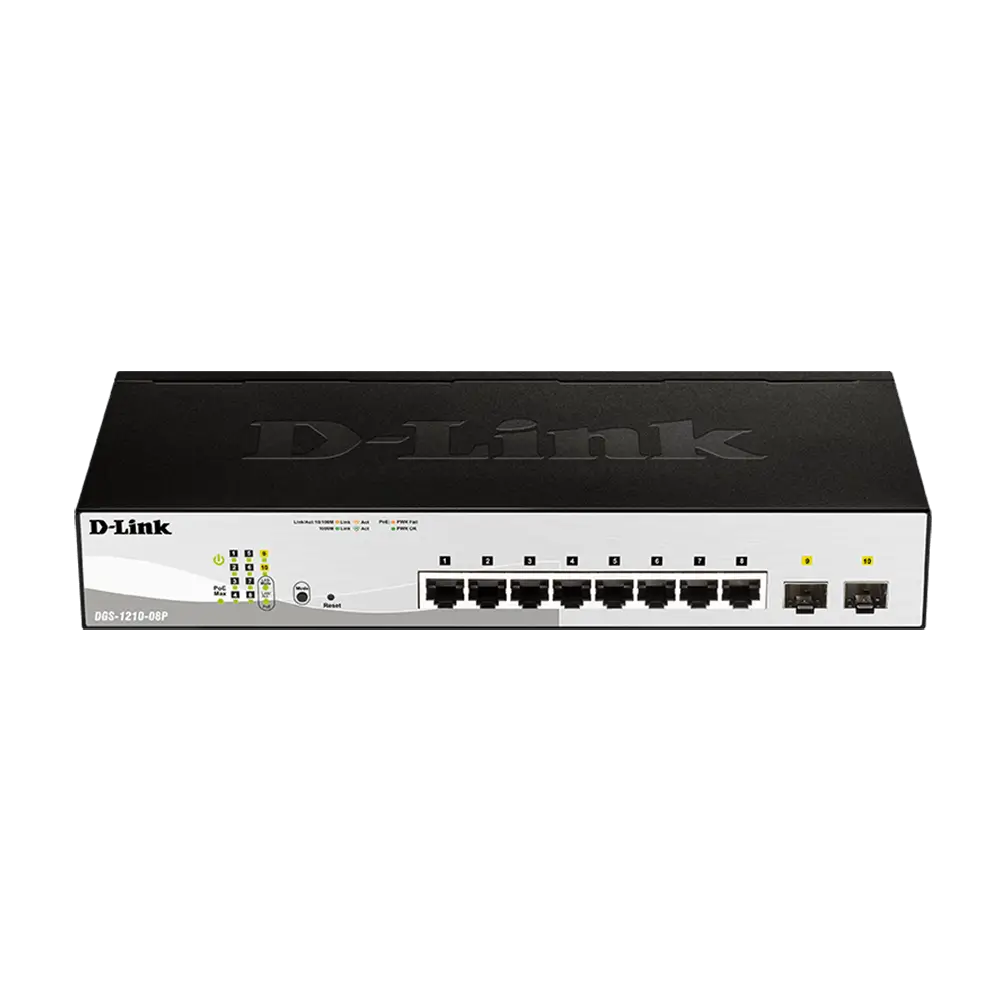

D-LINK DGS-1210-08P/E SWITCH 8XGB POE 2XSFP

– 8 puertos 10/100/1000 Mbps

Standards
– IEEE 802.3 compliant
– IEEE 802.3u compliant
– IEEE 802.3ab compliance
– Soporta Half/Full-duplex operation at 10/100Mbps
– Soporta Full-duplex operation at 1000Mbps
– Soporta Auto-Negotiation for each port
– Auto MDI/MDIX
– IEEE 802.3x Flow Control support
– IEEE 802.3az compliant

Rendimiento:
20Gbps
– Max.velocidad envío
14.9 Mpps
– Tamaño tabla MAC
16K Entries
– Packet Buffer
6Mbits

– Jumbo Frame
Hasta 13,000 Bytes
– Alimentación:
110 to 240 VAC, 50/60HZ internal universal power supply
– Max.Consumo
60 Watts
– Consumo Standy
5.6 Watts
– Sin ventilador
– Nivel acústico:
0 dBA
– Dimensions (W x D x H)
280 x 180 x 44 mm

19-inch standard rack
1U
– Peso:
0.42kg
– LEDs
Power (per device)
Link/Activity/Speed/PoE (per 10/100/1000 Mbps port)
Link/Activity/Speed (per SFP port)
Button to switch LED display mode between PoE and Link/ActivityPower (per device)
– Certifications
CE Class A
cUL, LVD
– MTBF
503,585 Hours (DGS-1100-08)
Funciones L2
– MAC Address Table: 16K
– Flow Control
802.3x Flow Control
HOL Blocking Prevention
– Jumbo Frame up to 13,000 Bytes
– IGMP Snooping
IGMP v1/v2 Snooping
IGMP Snooping v3 Awareness
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
– MLD Snooping1
Supports MLD v1/v2 awareness
Supports 256 groups
Fast Leave
– Spanning Tree Protocol
802.1D STP
802.1w RSTP
– Loopback Detection
– 802.3ad Link Aggregation
DGS-1210-10P: Max. 5 groups per device/8 ports per group
DGS-1210-20: Max. 10 groups per device/8 ports per group
DGS-1210-28/28P: Max. 14 groups per device/8 ports per group
DGS-1210-52: Max. 26 groups per device/8 ports per group
DGS-1210-16/24/48: Max. 8 groups per device/8 ports per group
– Port Mirroring
One-to-One, Many-to-One
Supports Mirroring for Tx/Rx/Both
– Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
LLDP, LLDP-MED
VLAN
– 802.1Q Tagged VLAN
– VLAN Group
Max. 256 static VLAN groups
Max. 4094 VIDs
– Management VLAN
– Asymmetric VLAN
– Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
– Auto Surveillance VLAN
Quality of Service (QoS)
– 802.1p Quality of Service
– Queue Handling
Strict
Weighted Round Robin (WRR)
– 8 queues per port
– Bandwidth Control
Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 15 Kb/s)
– CoS based on
802.1p Priority Queues
DSCP
ToS
TCP/UDP port number
IPv6 traffic class1
Access Control List (ACL)
– Max. 50 profiles
– Max. 200 rules shared by profiles
– Single or multiple ports (each rule)
– ACL based on
MAC Address
IPv4 Address (ICMP/IGMP/TCP/UDP)
IPv6 Address (ICMP/TCP/UDP)1
802.1p
DSCP
Ether type
IPv6 traffic class1
– ACL Actions
Permit
Deny
Seguridad
– Port Security
Supports up to 64 MAC addresses per port
– Broadcast/Multicast/Unicast Storm Control
– Static MAC
– D-Link Safeguard Engine
– DHCP Server Screening
– Trusted Host
– ARP Spoofing Prevention
Max. 64 entries
– SSL
Supports v1/v2/v3
Supports IPv4/IPv6
– Traffic Segmentation
– Smart Binding1
Discover connected devices and click to bind
ARP Packet Inspection: 512 entries
IP Packet Inspection: 128 entries
Supports DHCP Snooping
AAA
– 802.1X Port-based Authentication
Supports RADIUS Server
Supports EAP, OTP, TLS, TTLS, PEAP
OAM
– Cable Diagnostics
– Factory Reset
MIB
– 1213 MIB II
– 1493 Bridge MIB
– 1907 SNMP v2 MIB
– 1215 Trap Convention MIB
– 2233 Interface Group MIB
– D-Link Private MIB
– Power-Ethernet MIB
– LLDP MIB
– D-Link ZoneDefense MIB1
RFC Standard Compliance
– RFC 783 TFTP
– RFC 854 Telnet Server
– RFC 951 BootP/DHCP Client
– RFC 1157 SNMP v1, v2, v3
– RFC 1213 MIB II, IF MIB
– RFC 1215 MIB Traps Convention
– RFC 1350 TFTP
– RFC 1493 Bridge MIB
– RFC 1542 BootP/DHCP Client
– RFC 1769 SNTP
– RFC 1901 SNMP v1, v2, v3
– RFC 1907 SNMP v2 MIB
– RFC 1908 SNMP v1, v2, v3
– RFC 2068 FCS
– RFC 2131 BootP/DHCP Client
– RFC 2138 RADIUS Authentication
– RFC 2139 RADIUS Authentication
– RFC 2233 Interface Group MIB
– RFC 2246 SSL
– RFC 2475
– RFC 2570 SNMP v1, v2, v3
– RFC 2575 SNMP v1, v2, v3
– RFC 2598 CoS
– RFC 2616 FCS
– RFC 2618 RADIUS Authentication
– RFC 2819 RMON v1
– RFC 2865 RADIUS Authentication
– RFC 3164 System Log
– RFC 3195 System Log
– RFC 3411-17 SNMP
– RFC 3621 Power Ethernet MIB
Gestión
– Multi-Language Web-based GUI
English (default)
Simplified Chinese1
Traditional Chinese1
French1
German1
Italian1
Japanese1
Portuguese1
Russian1
Spanish1
– SmartConsole Utility2
– Simplified CLI
– Telnet Server
– TFTP Client
– IPv6 Neighbor Discovery
– Configurable MDI/MDIX
– SNMP
Supports v1, v2, v3
– SNMP Trap
– System Log
Max. 500 log entries
– BootP/DHCP Client
– D-Link Network Assistant support1
– SNTP
– ICMPv6
– IPv4/v6 Dual Stack1
– DHCP Auto Configuration
– RMON v1
D-Link Green 3.0 Technology
– Power Saving by:
Link Status
Cable Length detection
LED or Port Shutoff
Port Standby mode
System Hibernation mode
Time-based PoE (PoE model only)
