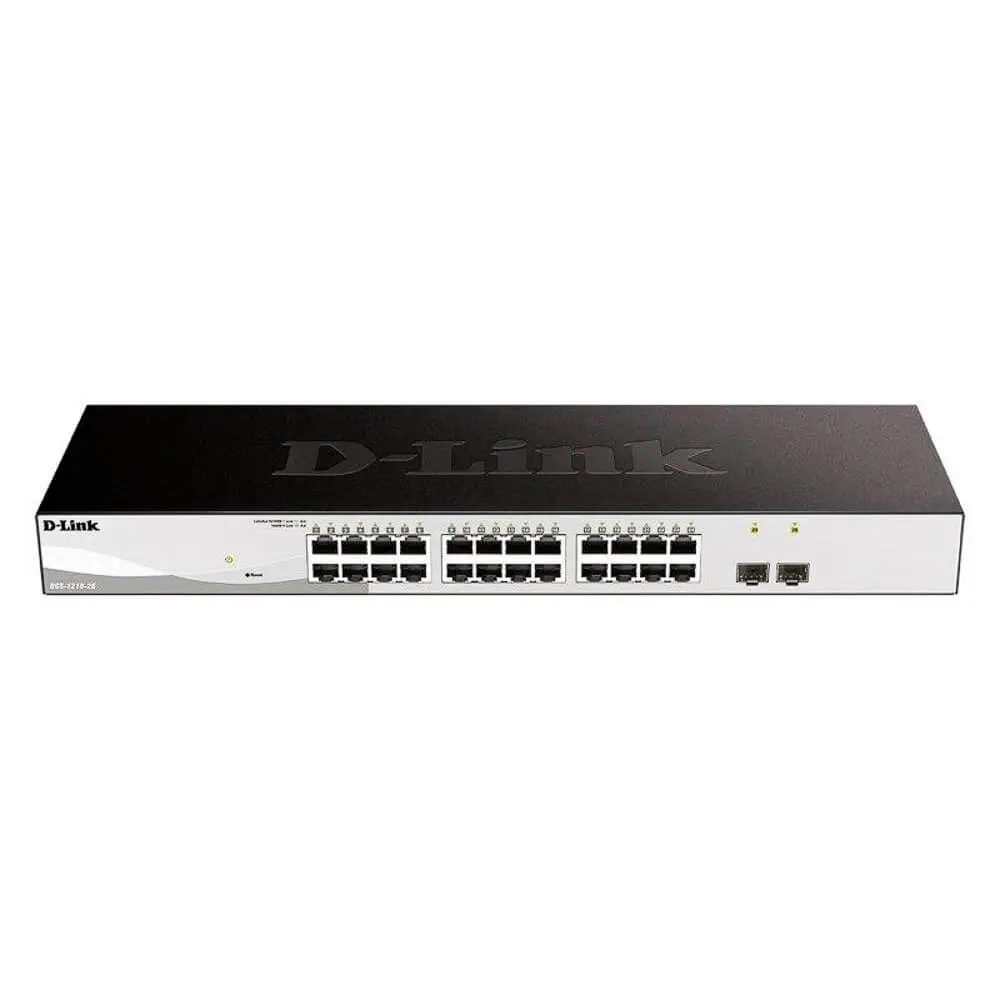

D-LINK DGS-1210-26/E SWITCH 26XGB 2XSFP

184,14€

Precio orientativo.
Consulte disponibilidad.

Sin existencias

Envíenos su consulta
Marca D-Link
Modelo DGS-1210-26/E
Interfaz – 24 x Puertos 10/100/1000BASE-TX
– 2 x Puertos SFP
Rendimiento – Capacidad del switch: 52 Gbps
– 64-Byte Packet Forwarding Rate: 38.7 Mpps
– MAC Address Table Size: 8K
– Packet Buffer: 0.5 MB por dispositivo
– Jumbo Frame: hasta 9,216 Bytes
Caracteristicas Funcionalidades L2
– MAC Address Table: 16K entries
– IGMP Snooping:
IGMP v1/v2 Snooping
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
– Loopback Detection
– 802.3ad Link Aggregation:
Maximum of 26 groups/8 ports per group
– LLDP
– LLDP-MED
– Jumbo Frame: Up to 9,216 bytes
– Spanning Tree Protocol: 802.1D STP
802.1w RSTP
– Flow Control: 802.3x Flow Control
HOL Blocking Prevention
– Port Mirroring: One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
– Multicast Filtering:
Forwards all unregistered groups
Filters all unregistered groups
– Configurable MDI/MDIX:
MLD snooping v1/v2 (256 groups)
VLAN
– 802.1Q
– VLAN Group
Max. 256 static VLAN groups
– Configurable VID from 1 – 4094
– Asymmetric VLAN
– Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
– Auto Surveillance VLAN
Calidad de servicios (QoS)
– 802.1p Quality of Service
– 8 queues per port
– Queue Handling
Strict
Weighted Round Robin (WRR)
– Bandwidth Control
Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
– QoS based on:
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port
Funcionalidades L3
– IP Interface
Supports 1 interface
– IPv6 Neighbor Discovery (ND)
Lista de conrol de acceso (ACL)
– Max. 50 access list
– Max. 768 rules shared by IPv4, MAC and IPv6
– Each rule can only be associated with a single port
– ACL based on
802.1p priority
VLAN
MAC address
– Ether type
– IP address
– DSCP
– Protocol type
– TCP/UDP port number
– IPv6 Traffic Class
Seguridad
– Broadcast/Multicast/Unicast Storm Control
– D-Link Safeguard Engine
– DHCP Server Screening
– IP-MAC-Port Binding (Smart Binding)
Supports 512 address binding entries
ARP Inspection
ARP + IP Inspection
Supports DHCP Snooping
– 802.1X Port-based Access Control
– ARP Spoofing Prevention
Max. 64 entries
– Traffic Segmentation
– SSH v2
– SSL
Supports v1/v2/v3
– Port Security
Supports up to 64 MAC addresses per port
– Duplicate address detection
AAA
– 802.1X Authentication
Supports local/RADIUS database
Supports port-based access control
Supports EAP, OTP, TLS, TTLS, PEAP
– IPv6 RADIUS Server
– Support MD5 authentication
Gestión
– Web-based GUI
– D-Link Network Assistant Utility
– Compact CLI
– Telnet Server
– TFTP Client
– Configurable MDI/MDIX
– SNMP
Supports v1/v2c/v3
– SNMP Trap
– Backup/Upgrade firmware
– Smart Wizard
– Upload/Download Configuration file
– System Log
Max. 500 log entries
– BootP/DHCP Client
– SNTP
– ICMP v6
– IPv4/v6 Dual Stack
– DHCP Auto Configuration
– Time Setting
SNTP
– RMONv1
– Trusted Host
Fisicas – Consumo (Standby/Max.): 5.06W / 15.11W
– Alimentación: 10 a 240 VAC, 50/60HZ fuente de alimentación interna
– Dimensiones (An x Prof x Alt): 440 x 140 x 44 mm
– Peso: 2.06 kg
– Ventilación: Sin Ventiladores
– No incluye enchufe inglés
EAN : 0790069469664 SKU: DGS-1210-26/E Categoría: Marca:
