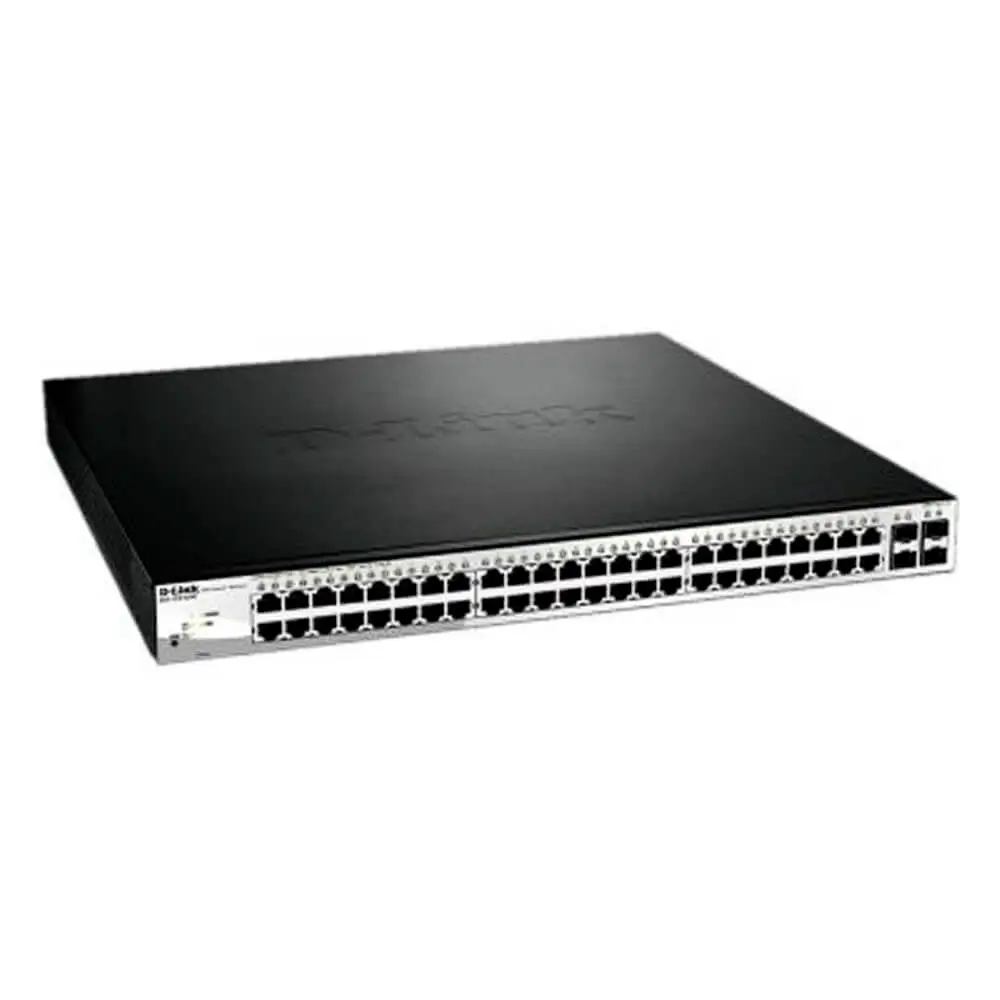

D-LINK DGS-1210-52MP/E SWITCH 48XGB POE 4XSFP COMB

– Capacidad de switch: 104 Gbps
– Tamaño de la tabla de direcciones MAC: 16K
– Buffer de paquetes: 3 MB por dispositivo
– Consumo(Standby/Máximo): 48.9W / 483.1W (PoE)
– Dimensiones: 440 x 430 x 44 mm
– Peso: 5.78 kg
– Ventilación: Ventilador inteligente
– Temperatura:
Operación: -5° a 50°C (23° a 112°F)
Almacenamiento: -20° a 70°C (-4° a 158°F)
– Humedad
Operación: 0% ~ 95% sin condensación
Almacenamieno: 0% ~ 95% sin condensación
– Certificación: CE Class A, VCCI Class A, FCC

Class A, cUL, CE (LVD), BSMI, CCC, C-Tick

L2 Features
MAC Address Table
– 16K entries
IGMP Snooping
– IGMP v1/v2 Snooping
– Supports 256 IGMP groups
– Supports at least 64 static multicast addresses
– IGMP per VLAN
– Supports IGMP Snooping Querier
Loopback Detection
802.3ad Link Aggregation:
– DGS-1210 28/28P: Maximum of 14 groups/8 ports per group
– DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group
– DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
LLDP
LLDP-MED
Jumbo Frame
– Up to 9,216 bytes
Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
Flow Control
– 802.3x Flow Control
– HOL Blocking Prevention
Port Mirroring
– One-to-One
– Many-to-One
– Supports Mirroring for Tx/Rx/Both
Multicast Filtering
– Forwards all unregistered groups
– Filters all unregistered groups
Configurable MDI/MDIX
– MLD snooping v1/v2 (256 groups)
VLAN
802.1Q
VLAN Group
– Max. 256 static VLAN groups
Configurable VID from 1 – 4094
Asymmetric VLAN
Auto Voice VLAN
– Max. 10 user-defined OUI
– Max. 8 default OUI
Auto Surveillance VLAN

Quality of Service (QoS)

802.1p Quality of Service
8 queues per port
Queue Handling
– Strict
– Weighted Round Robin (WRR)
Bandwidth Control
– Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
QoS based on:
– 802.1p Priority Queues
– DSCP
– ToS
– IPv6 Traffic Class
– TCP/UDP port
