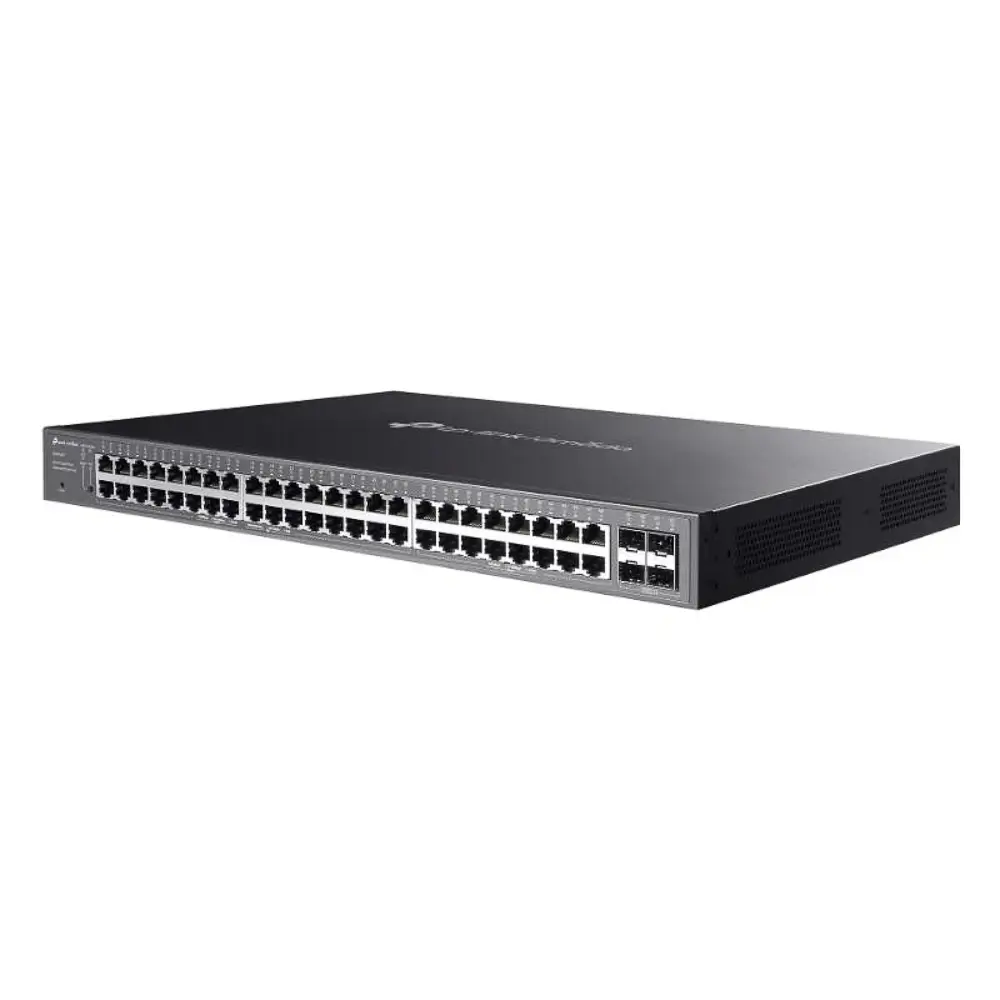

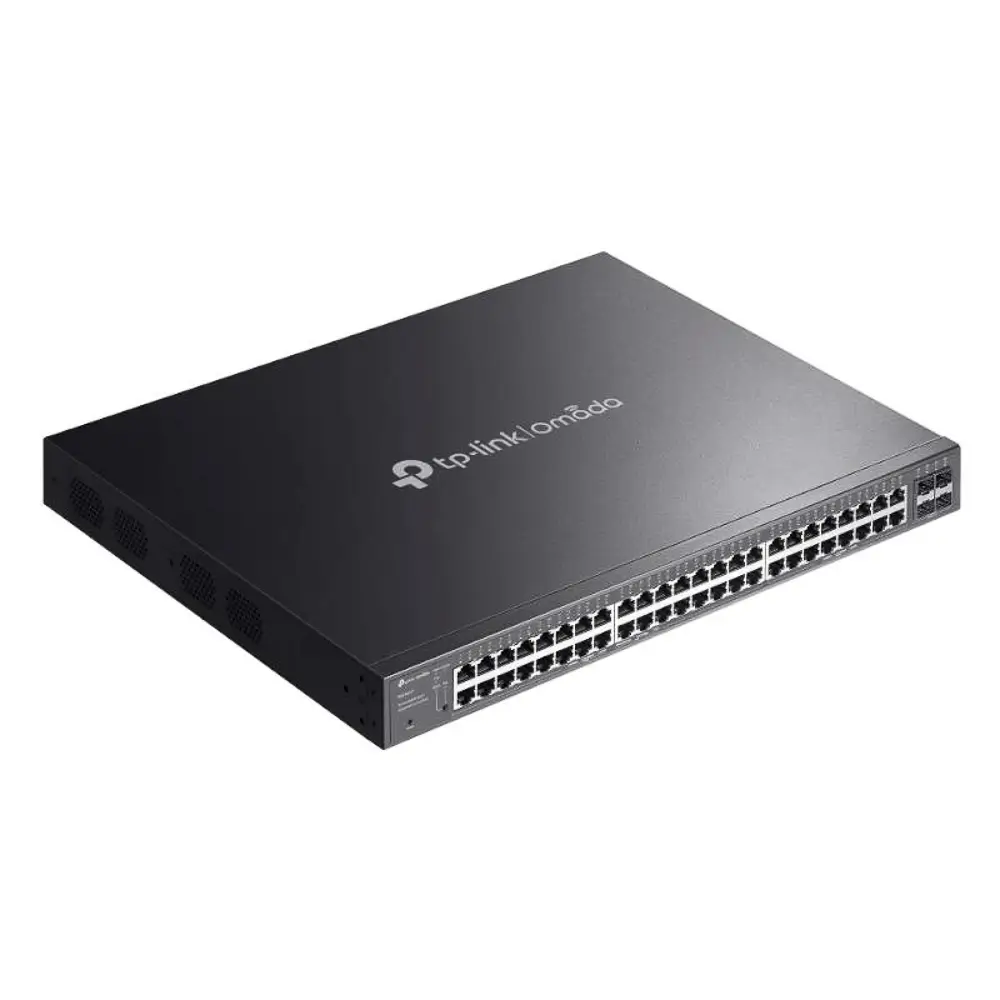

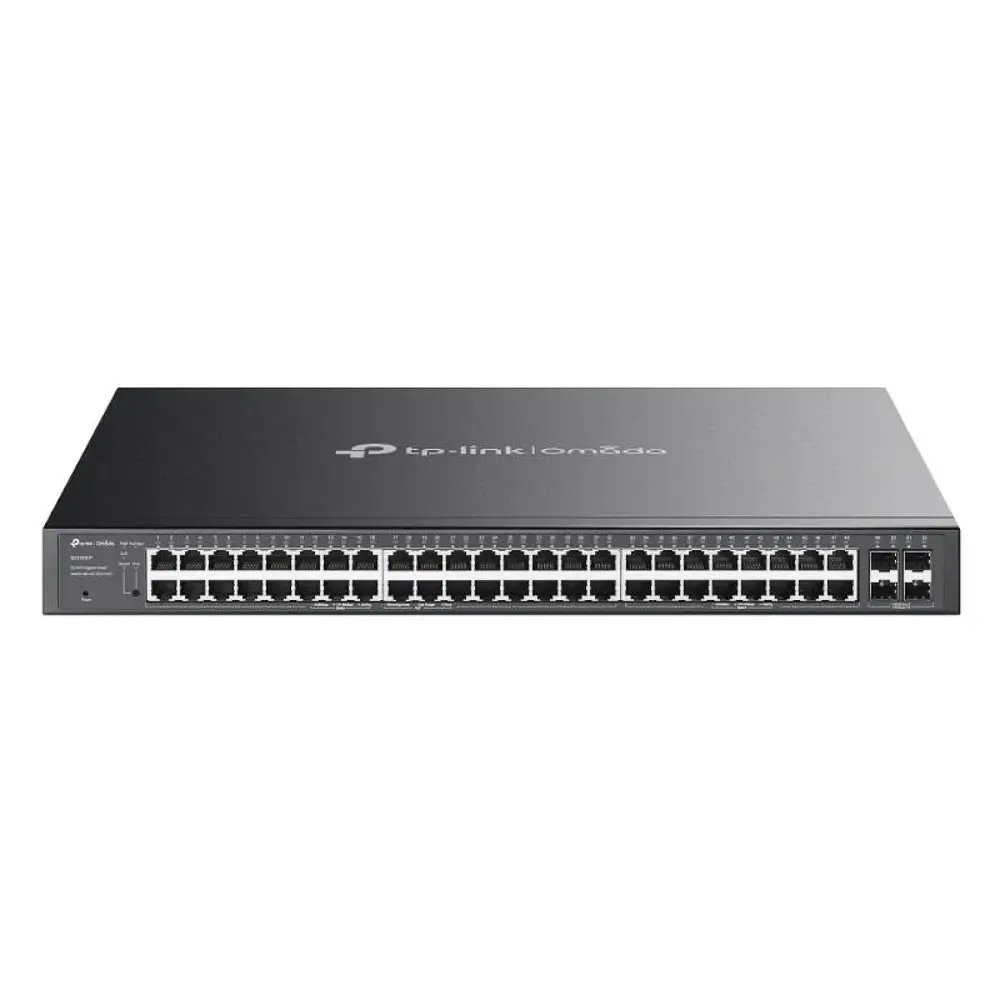

TP-Link SG2452LP Switch 32xGb PoE+ 16xGb 4xSFP

Envíenos su consulta
Marca TP-Link
Modelo SG2452LP
Puertos – 32 × 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
– 16 × 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
– 4 × Gigabit SFP Slots
Puertos PoE (RJ45)
– Standard: 802.3at/af compliant
– PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
– PoE Power Budget: 230 W
Rendimiento – Capacidad de Conmutación: 104 Gbps por Unidad
– Tasa de Reenvío de Paquetes: 77.37 Mpps
– Tabla de Direcciones MAC : 16 K
– Memoria del Buffer de Paquete: 12 Mbit
– Jumbo Frame: 9 KB
Software Calidad de Servicio
– 802.1p CoS/DSCP priority
– 8 priority queues
– Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
– Queue Weight Config
– Bandwidth Control: Port/Flow-based Rating Limit
– Smoother Performance
– Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
Características L2 y L2+
– 16 IP Interfaces: Support IPv4/IPv6 Interface
– Static Routing: 32 IPv4/IPv6 Static Routes
– DHCP Server
– DHCP Relay
DHCP Interface Relay
DHCP VLAN Relay
– DHCP L2 Relay
– Static ARP
– Proxy ARP
– Gratuitous ARP
– Link Aggregation
– Spanning Tree Protocol
– Loopback Detection
– 802.3x Flow Control
– Mirroring
– Device Link Detect Protocol (DLDP)
– 802.1ab LLDP/ LLDP-MED
Multicast L2
– 511 IPv4, IPv6 shared multicast groups
– IGMP Snooping
– Multicast VLAN Registration (MVR)
– Multicast Filtering
– Limited IP Multicast (256 profiles and 16 entries per profile)
Características Avanzadas
– Automatic Device Discovery
– Batch Configuration
– Batch Firmware Upgrading
– Intelligent Network Monitoring
– Abnormal Event Warnings
– Unified Configuration
– Reboot Schedule
VLAN
– VLAN Group: Max. 4K VLAN Groups
– 802.1Q tag VLAN
– MAC VLAN: 12 Entries
– Protocol VLAN
– GVRP
– Voice VLAN
Lista de Control de Acceso
– Support up to 230 entries
– Time-based ACL
– MAC ACL
– IP ACL
– IPv6 ACL
– Combined ACL
– Rule Operation: Permit/Deny
– Policy Action:
Mirroring
Redirect
Rate Limit
QoS Remark
– ACL Rules Binding
Port Binding
VLAN Binding
Seguridad
– IP-MAC-Port Binding
– AAA
– 802.1X:
Port based authentication
MAC (Host) based authentication
Authentication Method includes PAP/EAP-MD5
MAB
Guest VLAN
Radius authentication and accountability support
– IP/IPv6-MAC Binding
512 Binding Entries
DHCP Snooping
DHCPv6 Snooping
ARP Inspection
ND Detection
– IP Source Guard
253 Entries
Source IP+Source MAC
– IPv6 Source Guard
183 Entries
Source IPv6 Address+Source MAC
– DoS Defend
– Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
– Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
– Port Isolation
– Secure web management through HTTPS with SSLv3/TLS 1.2
– Secure Command Line Interface (CLI) management with SSHv1/SSHv2
– IP/Port/MAC-based access control
IPv6
– IPv6 Static Routing and ACL
– IPv6 Dual IPv4/IPv6
– IPv6 Interface
– Multicast Listener Discovery (MLD) Snooping
– IPv6 neighbor discovery (ND)
– Path maximum transmission unit (MTU) discovery
– Internet Control Message Protocol (ICMP) version 6
– TCPv6/UDPv6
– IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs
– MIB II (RFC1213)
– Bridge MIB (RFC1493)
– P/Q-Bridge MIB (RFC2674)
– Radius Accounting Client MIB (RFC2620)
– Radius Authentication Client MIB (RFC2618)
– Remote Ping, Traceroute MIB (RFC2925)
– Support TP-Link private MIBs
– RMON MIB(RFC1757, rmon 1,2,3,9)
Especificaciones – Cantidad de Ventiladores: Sin ventilador
– Bloqueo de Seguridad Físico
– Fuente de Alimentación: 100-240 V AC~50/60 Hz
– Montaje en rack
– Consumo de potencia máximo: 304.5W (110 V/60 Hz) (con 230 W PD connected)
– Disipación máxima de calor: 1035.4 BTU/hr (110 V/60 Hz) (con 230 W PD connected)
Gestión
– Omada App: Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
– Gestión Centralizada
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
– Acceso a la nube: Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
– Aprovisionamiento sin contacto: Requiring the use of the Omada Cloud-Based Controller.
– Funciones de gestión:
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
Certificaciones
– CE
– FCC
– RoHS
Requisitos del sistema
– Microsoft Windows 98SE, NT, 2000, XP
– Vista or Windows 7/8/10/11
– MAC OS, NetWare®, UNIX® or Linux.
Factores Ambientales
– Temperatura de Operación: 0 ºC a 40 ºC
– Temperatura de almacenamiento: -40 ºC a 70 ºC
– Humedad de funcionamiento: 10–90% HR sin condensación
– Humedad de almacenamiento: 5–90% RH sin condensación
Dimensiones
– 440 × 330 × 44 mm Contenido
– SG2452LP
– Power Cord
– Quick Installation Guide
– Rackmount Kit
– Rubber Feet
EAN : 8885020620818 SKU: SG2452LP Categoría: Marca:
